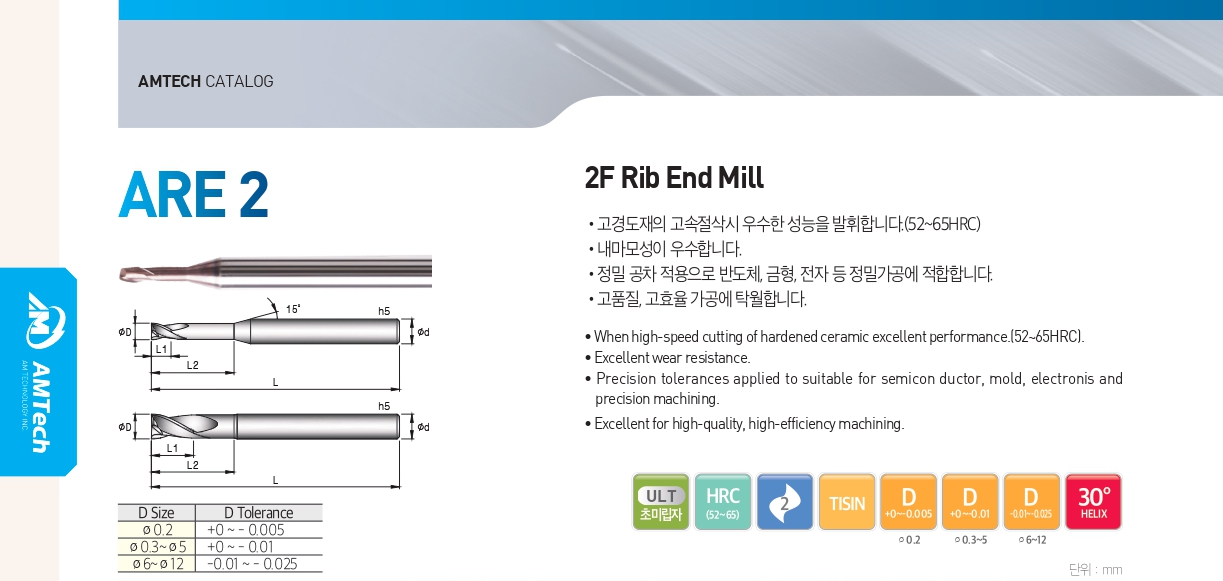

2 flutes rib flat endmill

2 flutes rib flat endmill
Order Number Diameter Length of cut Effective Length Overall Length Shank Dia
D L1 L2 L d
ARE 2 001 003 040 S04 0.1 0.3 – 40 4
ARE 2 002 005 040 S04 0.2 0.3 0.5 40 4
ARE 2 002 010 040 S04 0.2 0.3 1 40 4
ARE 2 002 015 040 S04 0.2 0.3 1.5 40 4
ARE 2 002 020 040 S04 0.2 0.3 2 40 4
ARE 2 003 010 040 S04 0.3 0.4 1 40 4
ARE 2 003 020 040 S04 0.3 0.4 2 40 4
ARE 2 004 020 040 S04 0.4 0.5 2 40 4
ARE 2 004 030 040 S04 0.4 0.5 3 40 4
ARE 2 004 040 040 S04 0.4 0.5 4 40 4
ARE 2 005 020 040 S04 0.5 0.6 2 40 4
ARE 2 005 040 040 S04 0.5 0.6 4 40 4
ARE 2 005 060 040 S04 0.5 0.6 6 40 4
ARE 2 005 080 040 S04 0.5 0.6 8 40 4
ARE 2 006 020 040 S04 0.6 0.7 2 40 4
ARE 2 006 040 040 S04 0.6 0.7 4 40 4
ARE 2 006 050 040 S04 0.6 0.7 5 40 4
ARE 2 006 060 040 S04 0.6 0.7 6 40 4
ARE 2 006 080 040 S04 0.6 0.7 8 40 4
ARE 2 006 100 040 S04 0.6 0.7 10 40 4
ARE 2 008 020 040 S04 0.8 1 2 40 4
ARE 2 008 040 040 S04 0.8 1 4 40 4
ARE 2 008 060 040 S04 0.8 1 6 40 4
ARE 2 008 080 040 S04 0.8 1 8 40 4
ARE 2 010 040 045 S04 1 1.2 4 45 4
ARE 2 010 060 045 S04 1 1.2 6 45 4
ARE 2 010 080 045 S04 1 1.2 8 45 4
ARE 2 010 100 045 S04 1 1.2 10 45 4
ARE 2 010 120 045 S04 1 1.2 12 45 4
ARE 2 010 140 045 S04 1 1.2 14 45 4
ARE 2 015 040 045 S04 1.5 1.8 4 45 4
ARE 2 015 060 045 S04 1.5 1.8 6 45 4
ARE 2 015 080 045 S04 1.5 1.8 8 45 4
ARE 2 015 100 045 S04 1.5 1.8 10 45 4
ARE 2 015 120 045 S04 1.5 1.8 12 45 4
ARE 2 015 160 050 S04 1.5 1.8 16 50 4
ARE 2 020 060 045 S04 2 2.5 6 45 4
ARE 2 020 080 045 S04 2 2.5 8 45 4
ARE 2 020 100 045 S04 2 2.5 10 45 4
ARE 2 020 120 045 S04 2 2.5 12 45 4
ARE 2 020 140 045 S04 2 2.5 14 45 4
ARE 2 020 160 050 S04 2 2.5 16 50 4
ARE 2 020 200 050 S04 2 2.5 20 50 4
ARE 2 020 250 060 S04 2 2.5 25 60 4
ARE 2 030 060 045 S06 3 3.5 6 45 6
ARE 2 030 100 045 S06 3 3.5 10 45 6
ARE 2 030 120 050 S06 3 3.5 12 50 6
ARE 2 030 160 055 S06 3 3.5 16 55 6
ARE 2 030 200 060 S06 3 3.5 20 60 6
ARE 2 030 250 065 S06 3 3.5 25 65 6
ARE 2 030 300 070 S06 3 3.5 30 70 6
ARE 2 040 100 050 S06 4 4.5 10 50 6
ARE 2 040 120 050 S06 4 4.5 12 50 6
ARE 2 040 160 055 S06 4 4.5 16 55 6
ARE 2 040 200 060 S06 4 4.5 20 60 6
ARE 2 040 250 065 S06 4 4.5 25 65 6
ARE 2 040 300 070 S06 4 4.5 30 70 6
ARE 2 040 350 075 S06 4 4.5 35 75 6
ARE 2 050 200 060 S06 5 7 20 60 6
ARE 2 060 200 060 S06 6 10 20 60 6
ARE 2 080 300 080 S08 8 12 30 80 8
ARE 2 100 350 080 S10 10 15 35 80 10
ARE 2 100 450 100 S10 10 15 45 100 10
ARE 2 120 400 100 S12 12 18 40 100 12
ARE 2 120 500 120 S12 12 18 50 120 12
