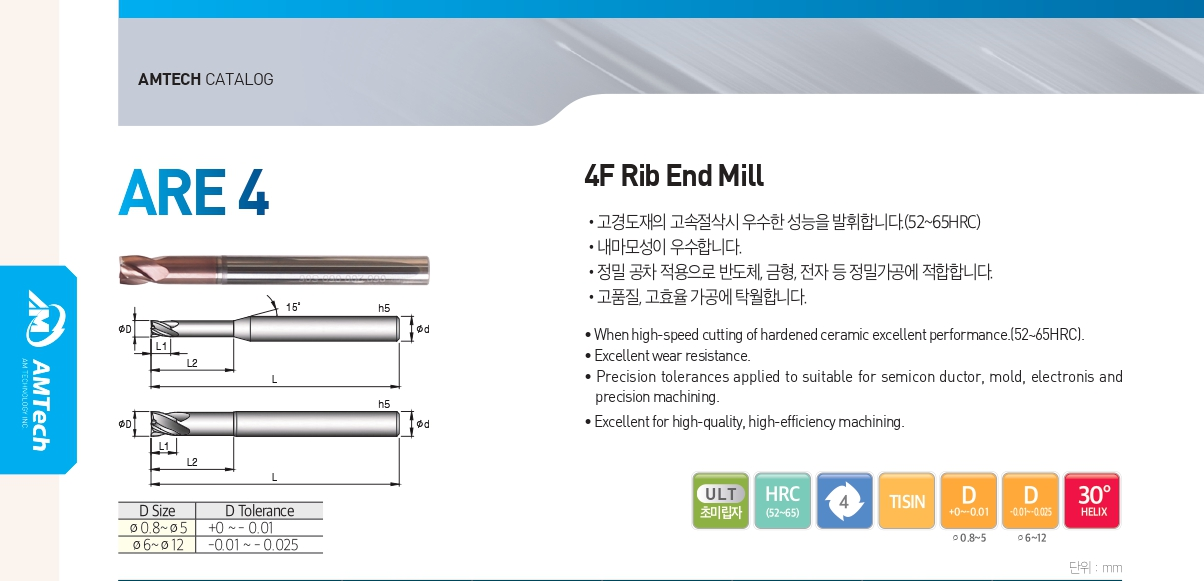

4 flutes rib flat endmill

4 flutes rib flat endmill
Order Number 날경
Diameter		 날장
Length of cut		 유효장
Effective Length		 전장
Overall Length		 생크
Shank Dia
D L1 L2 L d
ARE 4 008 020 045 S04 0.8 1 2 45 4
ARE 4 008 040 045 S04 0.8 1 4 45 4
ARE 4 008 060 045 S04 0.8 1 6 45 4
ARE 4 008 080 045 S04 0.8 1 8 45 4
ARE 4 008 100 045 S04 0.8 1 10 45 4
ARE 4 010 040 045 S04 1 1.2 4 45 4
ARE 4 010 060 045 S04 1 1.2 6 45 4
ARE 4 010 080 045 S04 1 1.2 8 45 4
ARE 4 010 100 045 S04 1 1.2 10 45 4
ARE 4 015 040 045 S04 1.5 1.8 4 45 4
ARE 4 015 060 045 S04 1.5 1.8 6 45 4
ARE 4 015 080 045 S04 1.5 1.8 8 45 4
ARE 4 015 100 045 S04 1.5 1.8 10 45 4
ARE 4 015 120 045 S04 1.5 1.8 12 45 4
ARE 4 020 040 045 S04 2 2.5 4 45 4
ARE 4 020 060 045 S04 2 2.5 6 45 4
ARE 4 020 080 045 S04 2 2.5 8 45 4
ARE 4 020 100 045 S04 2 2.5 10 45 4
ARE 4 020 120 045 S04 2 2.5 12 45 4
ARE 4 020 160 050 S04 2 2.5 16 50 4
ARE 4 020 200 060 S04 2 2.5 20 60 4
ARE 4 020 250 060 S04 2 2.5 25 60 4
ARE 4 030 080 045 S06 3 2.5 8 45 6
ARE 4 030 100 045 S06 3 2.5 10 45 6
ARE 4 030 120 050 S06 3 3.5 12 50 6
ARE 4 030 160 055 S06 3 3.5 16 55 6
ARE 4 030 200 060 S06 3 3.5 20 60 6
ARE 4 030 250 065 S06 3 3.5 25 65 6
ARE 4 030 300 070 S06 3 3.5 30 70 6
ARE 4 040 080 050 S06 4 4.5 8 50 6
ARE 4 040 100 050 S06 4 4.5 10 50 6
ARE 4 040 120 050 S06 4 4.5 12 50 6
ARE 4 040 160 055 S06 4 4.5 16 55 6
ARE 4 040 200 060 S06 4 4.5 20 60 6
ARE 4 040 250 065 S06 4 4.5 25 65 6
ARE 4 040 300 070 S06 4 4.5 30 70 6
ARE 4 050 200 060 S06 5 7 20 60 6
ARE 4 060 200 060 S06 6 6 20 60 6
ARE 4 060 300 080 S06 6 6 30 80 6
ARE 4 080 300 080 S08 8 10 30 80 8
ARE 4 080 400 100 S08 8 10 40 100 8
ARE 4 100 350 080 S10 10 15 35 80 10
ARE 4 100 450 100 S10 10 15 45 100 10
ARE 4 120 400 100 S12 12 18 40 100 12
ARE 4 120 500 120 S12 12 18 50 120 12
