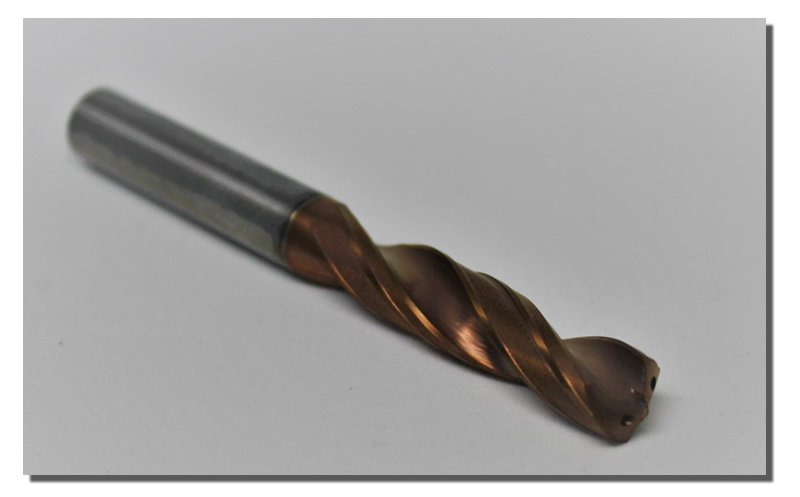

SOLID CARBIDE OIL HOLE DRILL

ORDERING No. SPEC ATCM Series (For SUS & Cast iron) ORDERING No. ATCS Series (For steel)
ΦD Φshank FL OAL FL OAL
ATCM 030 3.0 6 43 75 ATCS 030 43 75
ATCM 031 3.1 6 43 75 ATCS 031 43 75
ATCM 032 3.2 6 43 75 ATCS 032 43 75
ATCM 033 3.3 6 43 75 ATCS 033 43 75
ATCM 034 3.4 6 43 75 ATCS 034 43 75
ATCM 035 3.5 6 43 75 ATCS 035 43 75
ATCM 036 3.6 6 43 75 ATCS 036 43 75
ATCM 037 3.7 6 43 75 ATCS 037 43 75
ATCM 038 3.8 6 43 75 ATCS 038 43 75
ATCM 039 3.9 6 43 75 ATCS 039 43 75
ATCM 040 4.0 6 43 75 ATCS 040 43 75
ATCM 041 4.1 6 45 80 ATCS 041 45 80
ATCM 042 4.2 6 45 80 ATCS 042 45 80
ATCM 043 4.3 6 45 80 ATCS 043 45 80
ATCM 044 4.4 6 45 80 ATCS 044 45 80
ATCM 045 4.5 6 45 80 ATCS 045 45 80
ATCM 046 4.6 6 45 80 ATCS 046 45 80
ATCM 047 4.7 6 45 80 ATCS 047 45 80
ATCM 048 4.8 6 45 80 ATCS 048 45 80
ATCM 049 4.9 6 45 80 ATCS 049 45 80
ATCM 050 5.0 6 45 80 ATCS 050 45 80
ATCM 051 5.1 6 45 80 ATCS 051 45 80
ATCM 052 5.2 6 50 85 ATCS 052 50 85
ATCM 053 5.3 6 50 85 ATCS 053 50 85
ATCM 054 5.4 6 50 85 ATCS 054 50 85
ATCM 055 5.5 6 50 85 ATCS 055 50 85
ATCM 056 5.6 6 50 85 ATCS 056 50 85
ATCM 057 5.7 6 50 85 ATCS 057 50 85
ATCM 058 5.8 6 50 85 ATCS 058 50 85
ATCM 059 5.9 6 50 85 ATCS 059 50 85
ATCM 060 6.0 6 50 85 ATCS 060 50 85
ATCM 061 6.1 8 50 85 ATCS 061 50 85
ATCM 062 6.2 8 55 90 ATCS 062 55 90
ATCM 063 6.3 8 55 90 ATCS 063 55 90
ATCM 064 6.4 8 55 90 ATCS 064 55 90
ATCM 065 6.5 8 55 90 ATCS 065 55 90
ATCM 066 6.6 8 55 90 ATCS 066 55 90
ATCM 067 6.7 8 55 90 ATCS 067 55 90
ATCM 068 6.8 8 55 90 ATCS 068 55 90
ATCM 069 6.9 8 55 90 ATCS 069 55 90
ORDERING No. SPEC ATCM Series (For SUS & Cast iron) ORDERING No. ATCS Series (For steel)
ΦD Φshank FL OAL FL OAL
ATCM 070 7.0 8 55 90 ATCS 070 60 95
ATCM 071 7.1 8 55 90 ATCS 071 60 95
ATCM 072 7.2 8 60 95 ATCS 072 60 95
ATCM 073 7.3 8 60 95 ATCS 073 60 95
ATCM 074 7.4 8 60 95 ATCS 074 60 95
ATCM 075 7.5 8 60 95 ATCS 075 60 95
ATCM 076 7.6 8 60 95 ATCS 076 60 95
ATCM 077 7.7 8 60 95 ATCS 077 65 100
ATCM 078 7.8 8 60 95 ATCS 078 65 100
ATCM 079 7.9 8 60 95 ATCS 079 65 100
ATCM 080 8.0 8 60 95 ATCS 080 65 100
ATCM 081 8.1 10 60 95 ATCS 081 65 100
ATCM 082 8.2 10 65 100 ATCS 082 65 100
ATCM 083 8.3 10 65 100 ATCS 083 65 100
ATCM 084 8.4 10 65 100 ATCS 084 65 100
ATCM 085 8.5 10 65 100 ATCS 085 65 100
ATCM 086 8.6 10 65 100 ATCS 086 65 100
ATCM 087 8.7 10 65 100 ATCS 087 70 105
ATCM 088 8.8 10 65 100 ATCS 088 70 105
ATCM 089 8.9 10 65 100 ATCS 089 70 105
ATCM 090 9.0 10 65 100 ATCS 090 70 105
ATCM 091 9.1 10 65 100 ATCS 091 70 105
ATCM 092 9.2 10 70 105 ATCS 092 70 105
ATCM 093 9.3 10 70 105 ATCS 093 70 105
ATCM 094 9.4 10 70 105 ATCS 094 70 105
ATCM 095 9.5 10 70 105 ATCS 095 70 105
ATCM 096 9.6 10 70 105 ATCS 096 70 105
ATCM 097 9.7 10 70 105 ATCS 097 73 108
ATCM 098 9.8 10 70 105 ATCS 098 73 108
ATCM 099 9.9 10 70 105 ATCS 099 73 108
ATCM 100 10.0 10 70 105 ATCS 100 73 108
ATCM 101 10.1 12 70 105 ATCS 101 73 108
ATCM 102 10.2 12 73 108 ATCS 102 73 108
ATCM 103 10.3 12 73 108 ATCS 103 73 108
ATCM 104 10.4 12 73 108 ATCS 104 73 108
ATCM 105 10.5 12 73 108 ATCS 105 73 108
ATCM 106 10.6 12 73 108 ATCS 106 73 108
ATCM 107 10.7 12 73 108 ATCS 107 73 108
ATCM 108 10.8 12 73 108 ATCS 108 73 108
ATCM 109 10.9 12 73 108 ATCS 109 73 108
ORDERING No. SPEC ATCM Series (For SUS & Cast iron) ORDERING No. ATCS Series (For steel)
ΦD Φshank FL OAL FL OAL
ATCM 110 11.0 12 73 108 ATCS 110 73 108
ATCM 111 11.1 12 73 108 ATCS 111 73 108
ATCM 112 11.2 12 80 120 ATCS 112 80 120
ATCM 113 11.3 12 80 120 ATCS 113 80 120
ATCM 114 11.4 12 80 120 ATCS 114 80 120
ATCM 115 11.5 12 80 120 ATCS 115 80 120
ATCM 116 11.6 12 80 120 ATCS 116 80 120
ATCM 117 11.7 12 80 120 ATCS 117 80 120
ATCM 118 11.8 12 80 120 ATCS 118 80 120
ATCM 119 11.9 12 80 120 ATCS 119 80 120
ATCM 120 12.0 12 80 120 ATCS 120 80 120
ATCM 121 12.1 13 63 102 ATCS 121 80 120
ATCM 122 12.2 13 63 102 ATCS 122 90 137
ATCM 123 12.3 13 63 102 ATCS 123 90 137
ATCM 124 12.4 13 63 102 ATCS 124 90 137
ATCM 125 12.5 13 63 102 ATCS 125 90 137
ATCM 126 12.6 13 63 102 ATCS 126 90 137
ATCM 127 12.7 13 63 102 ATCS 127 90 137
ATCM 128 12.8 13 63 102 ATCS 128 90 137
ATCM 129 12.9 13 63 102 ATCS 129 90 137
ATCM 130 13.0 13 63 102 ATCS 130 90 137
ATCM 131 13.1 14 63 102 ATCS 131 90 137
ATCM 132 13.2 14 65 107 ATCS 132 96 147
ATCM 133 13.3 14 65 107 ATCS 133 96 147
ATCM 134 13.4 14 65 107 ATCS 134 96 147
ATCM 135 13.5 14 65 107 ATCS 135 96 147
ATCM 136 13.6 14 65 107 ATCS 136 96 147
ATCM 137 13.7 14 65 107 ATCS 137 96 147
ATCM 138 13.8 14 65 107 ATCS 138 96 147
ATCM 139 13.9 14 65 107 ATCS 139 96 147
ATCM 140 14.0 14 65 107 ATCS 140 96 147

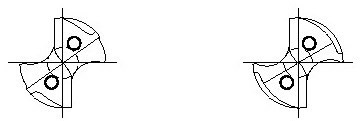

ATCM drill is designed to work with
cast iron and SUS and suitable for deep hole
processing (Multi flute drill)

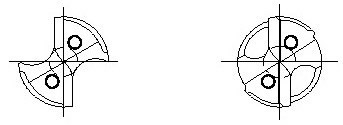

ATCS drill is designed to work with
Steel and cast iron. The drill evacuates chips very easily and good for high speed machining
